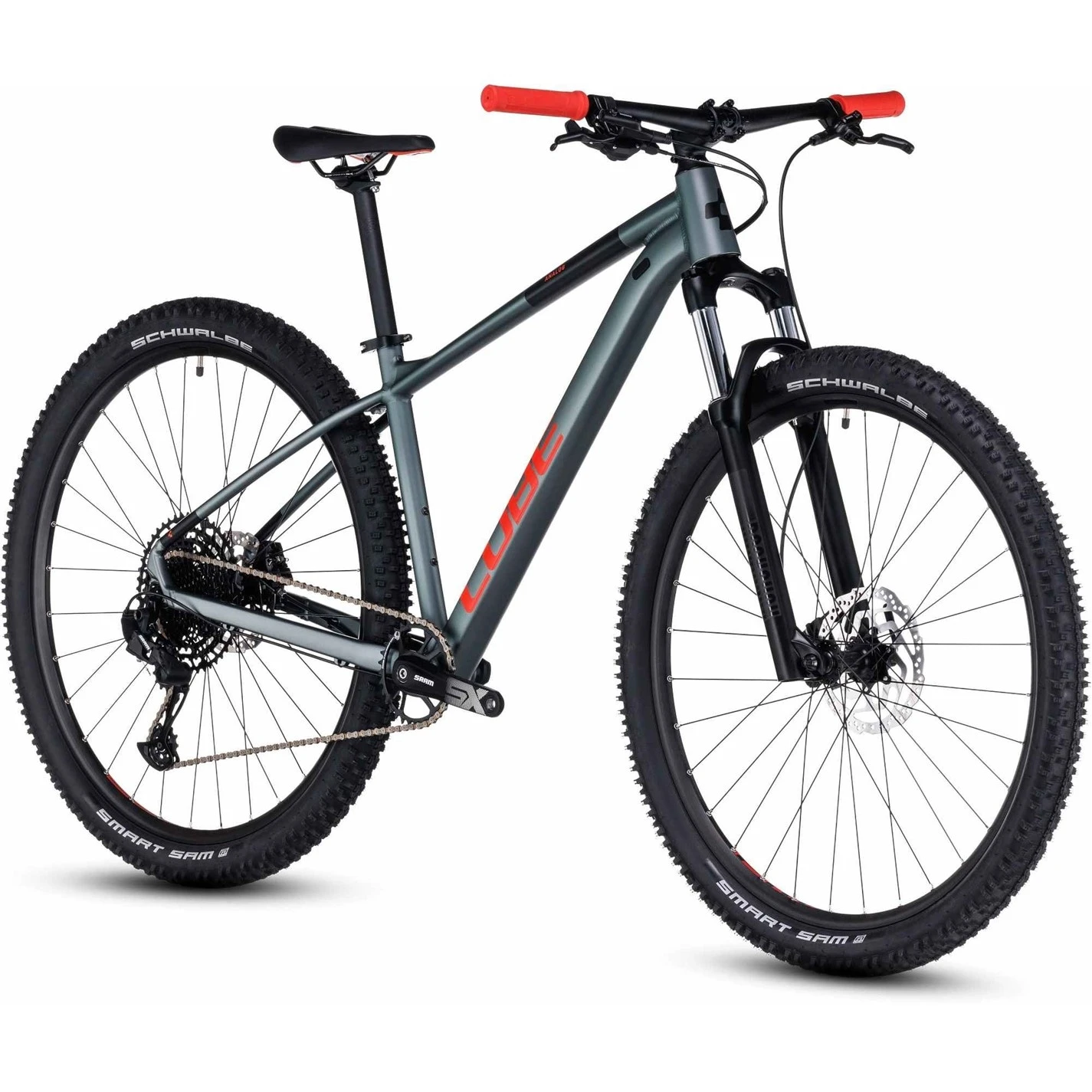

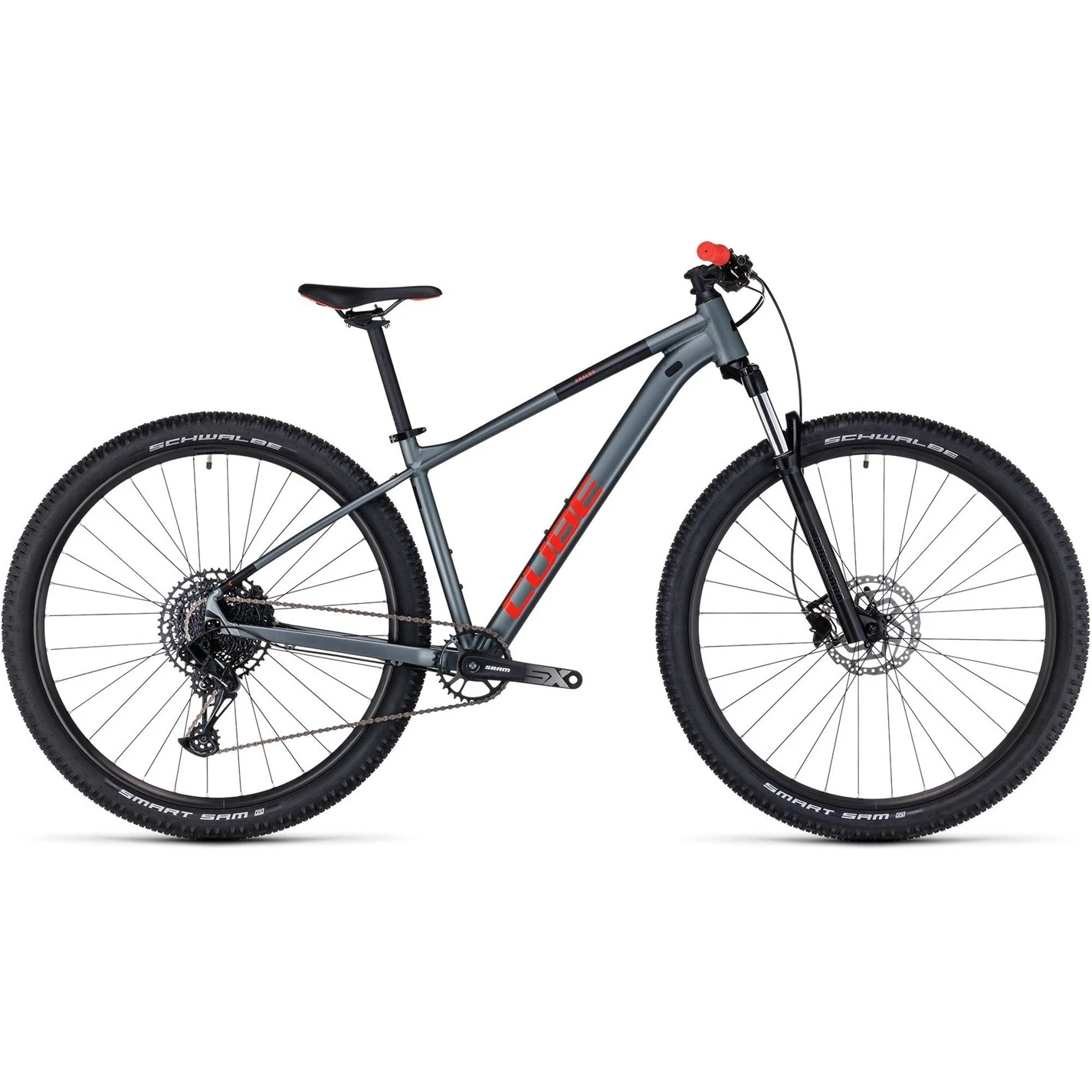

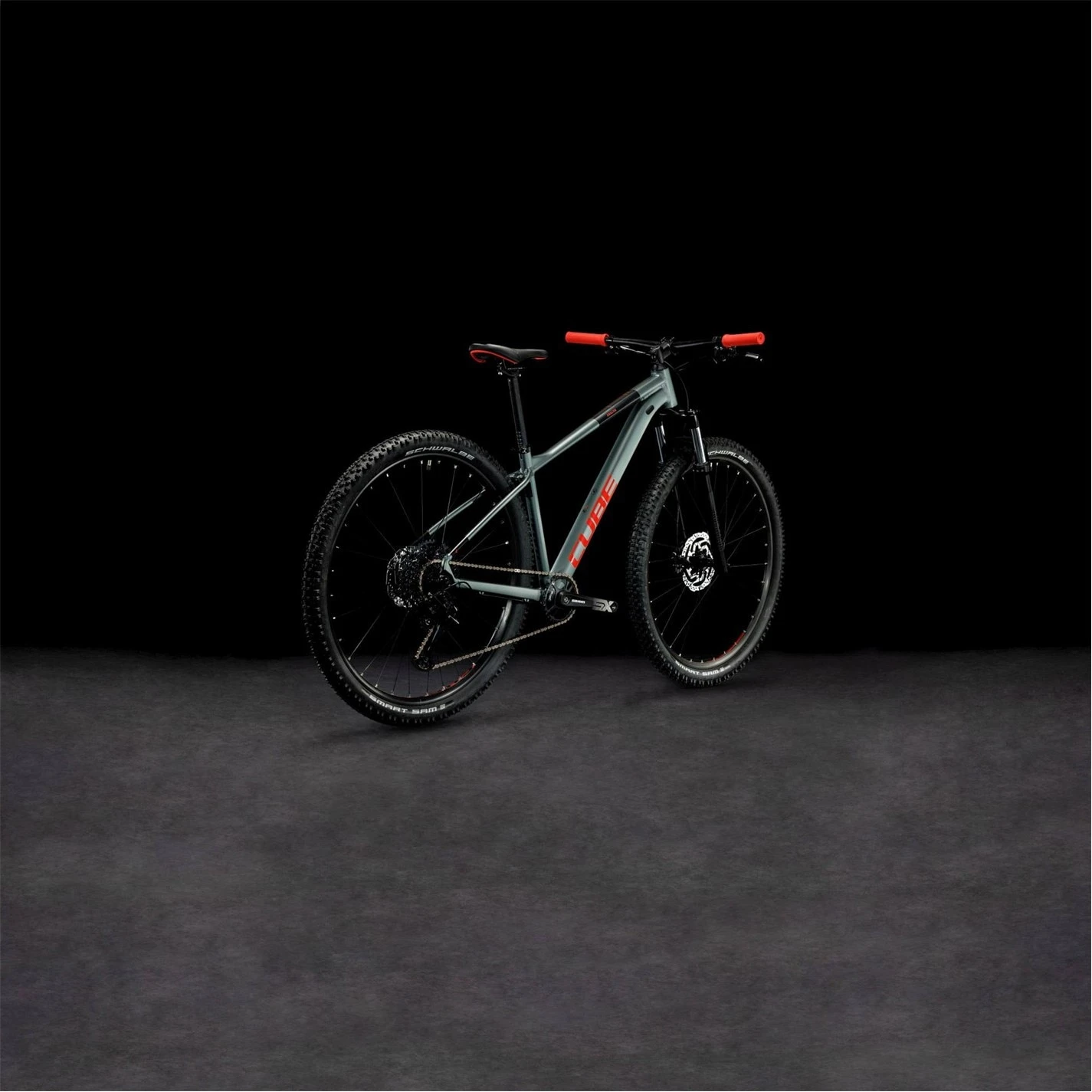

Cube Analog 2023 Mountain Bike

About the Cube Analog Mountain Bike

The Analog’s sleek looks are thanks to its smooth-welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There’s even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier. Updated geometry includes a lower top tube and tapered head tube for more confident handling, cables run internally for reduced maintenance, and there’s plenty of room to run wide, grippy and comfortable 2.25in tyres. And, as your skills increase, there’s scope to fit a dropper post upgrade.

Wheel Sizes: XS and S – 27.5in, M,L,XL and XXL 29in

Key Features

• Smooth Welding
• Internal Cable Routing
• SRAM 1×12 Eagle Gearing
• RockShox Judy Silver Fork

Specifications

Frameset

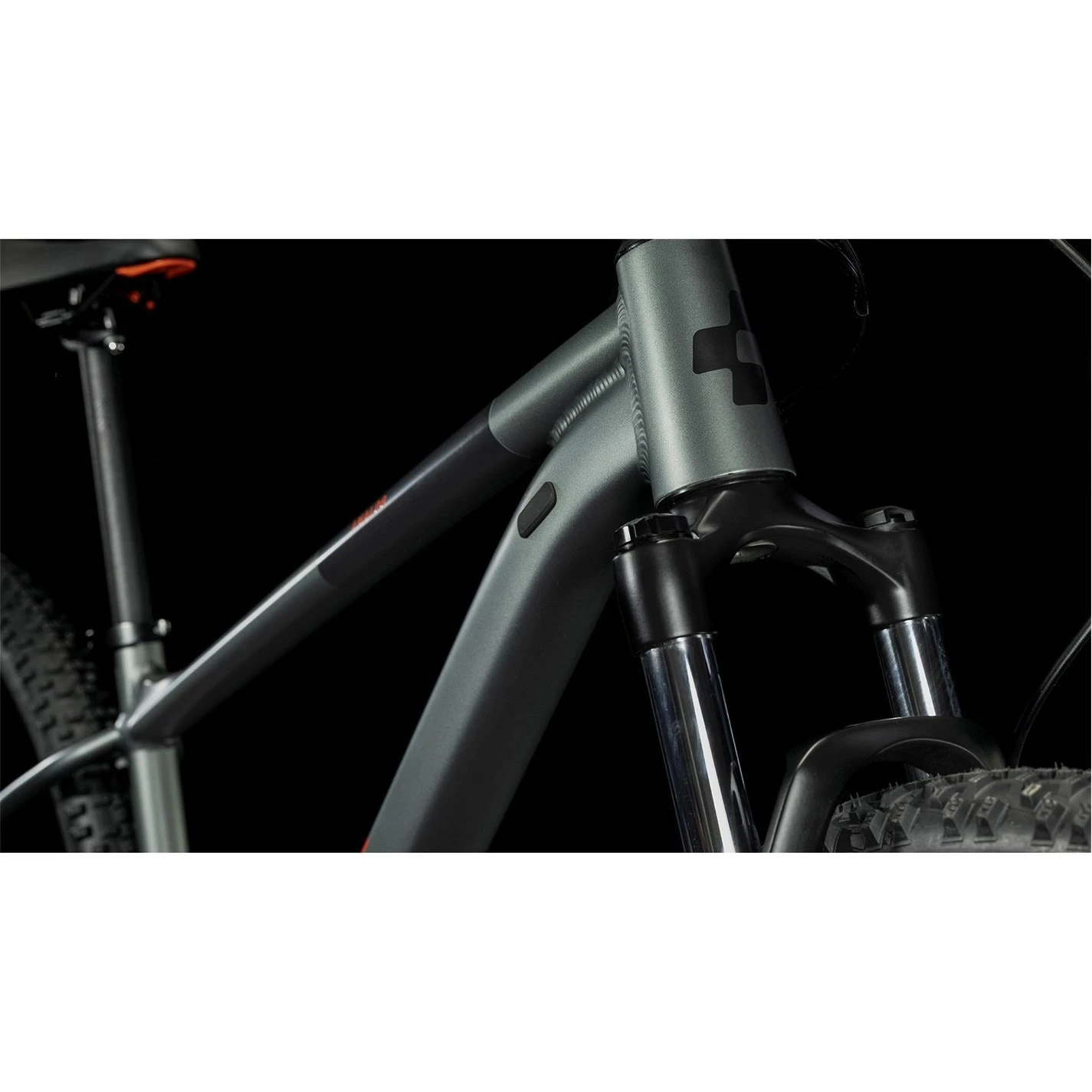

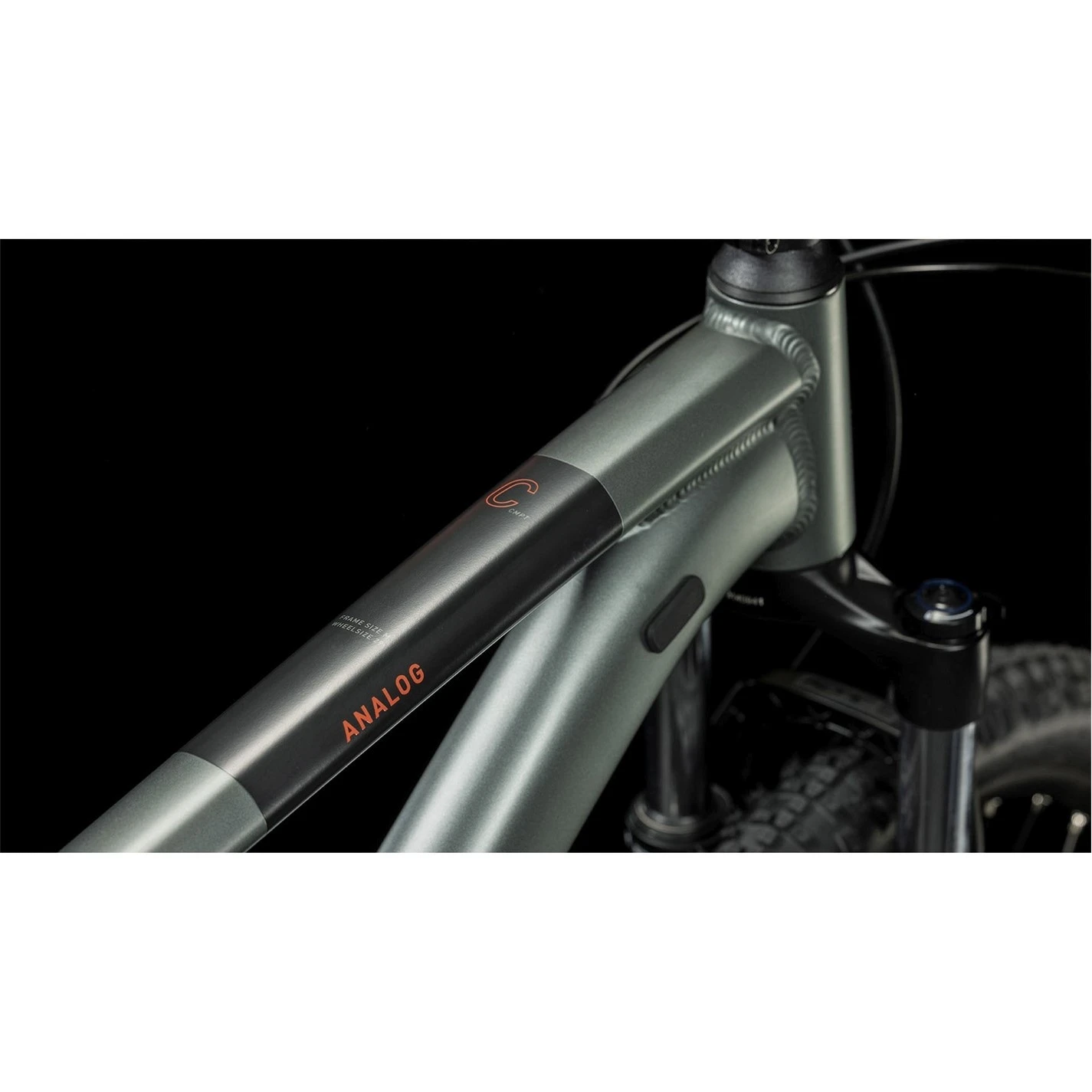

• Frame: Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
• Fork: RockShox Judy Silver TK Coil, 100mm, Lockout

Wheels

• Wheelset: CUBE ZX20, 32H, Disc
• Tyres: Schwalbe Smart Sam, Active, 2.25

Drivetrain

• Pedals: ACID PP MTB

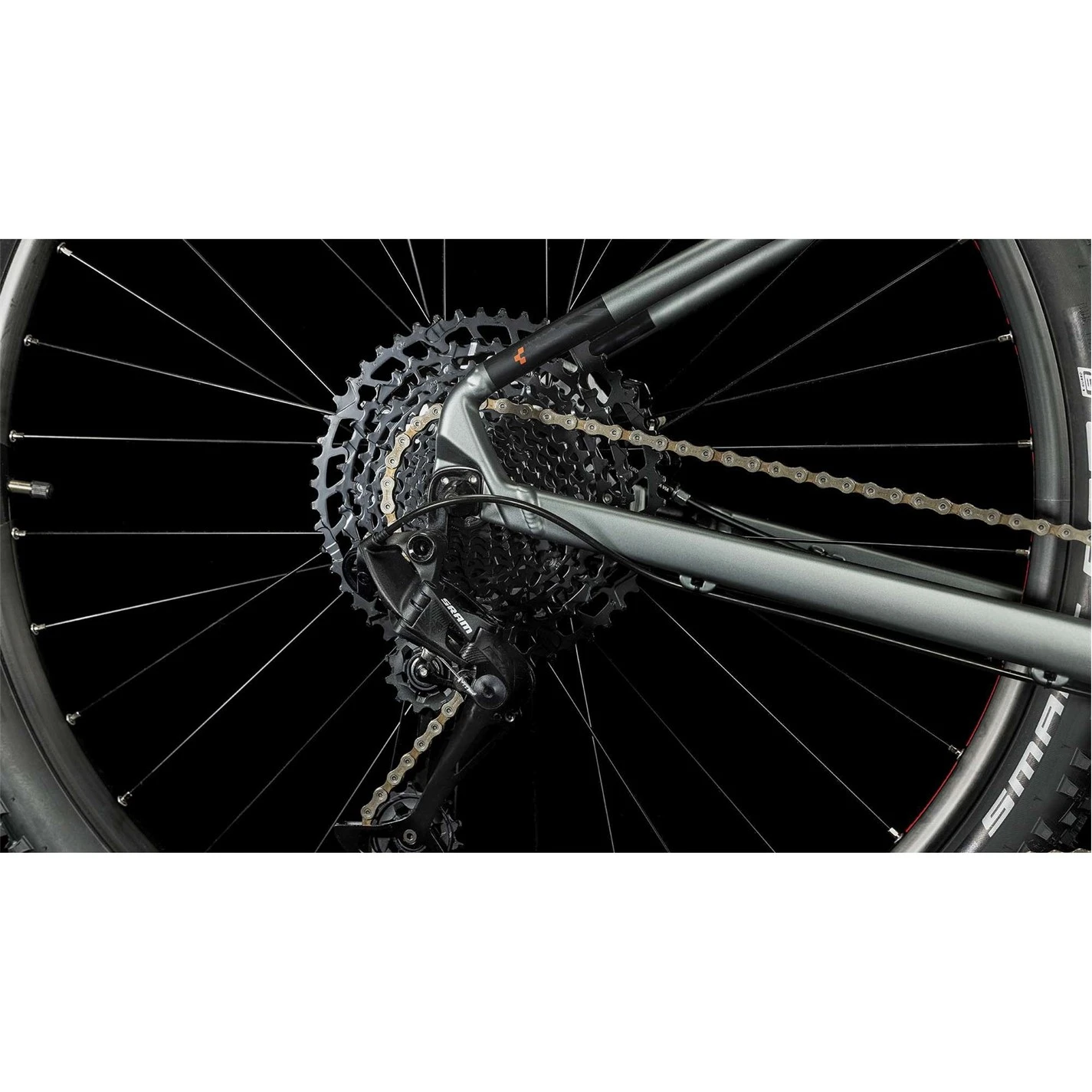

• Rear Derailleur: Sram SX Eagle, 12-Speed
• Shifters: Sram SX Eagle Trigger
• Chain: Sram SX Eagle

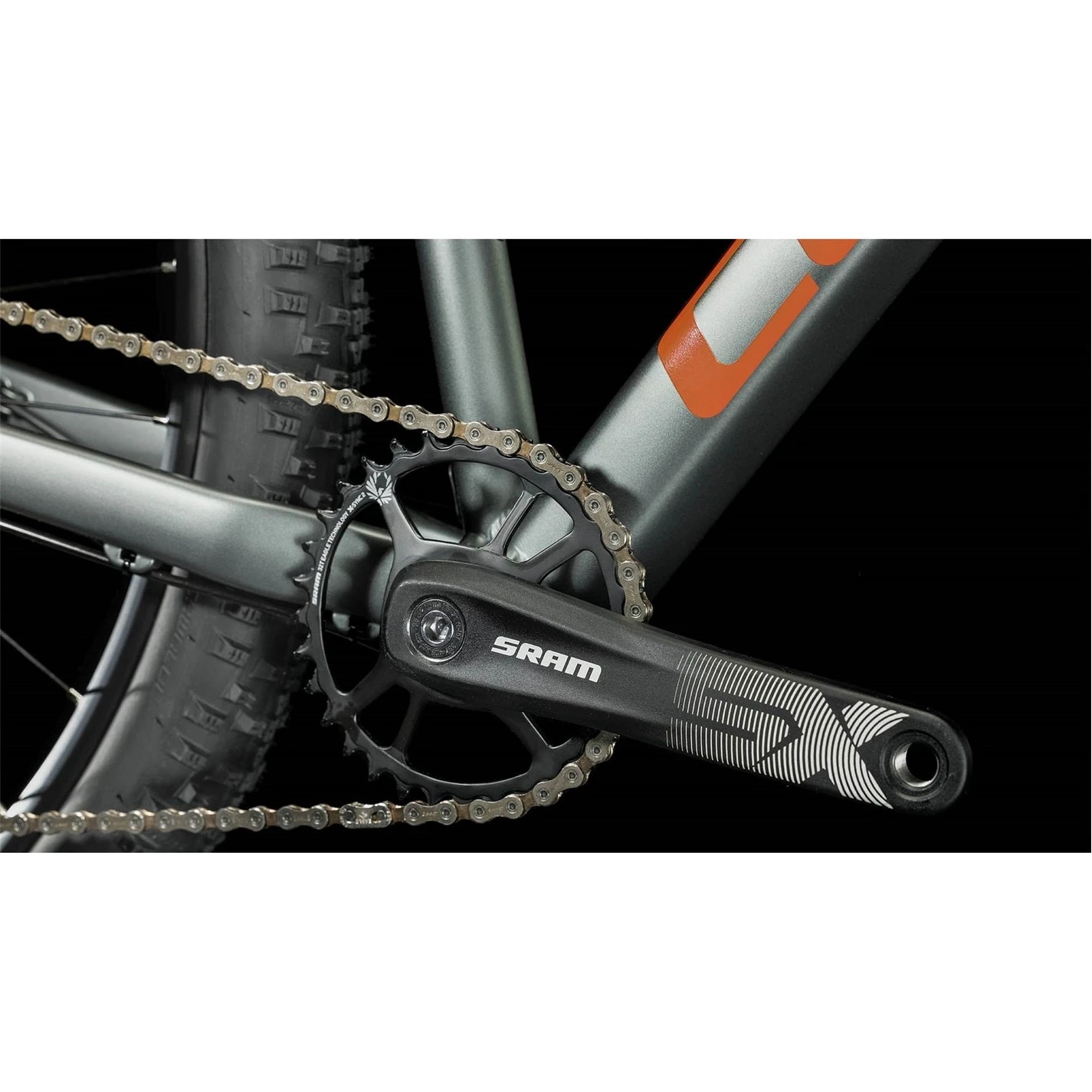

• Crankset: Sram SX Eagle Powerspline, 32T, 175mm
• Cassette: Sram PG-1210 Eagle, 11-50T
• Bottom Bracket: Sram Power Spline, 73mm BSA

Components

• Handlebar: CUBE Rise Trail Bar, 680mm
• Stem: CUBE Performance Stem SLX, 31.8mm
• Brakes: Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (180/160)
• Saddle: Natural Fit Venec Lite

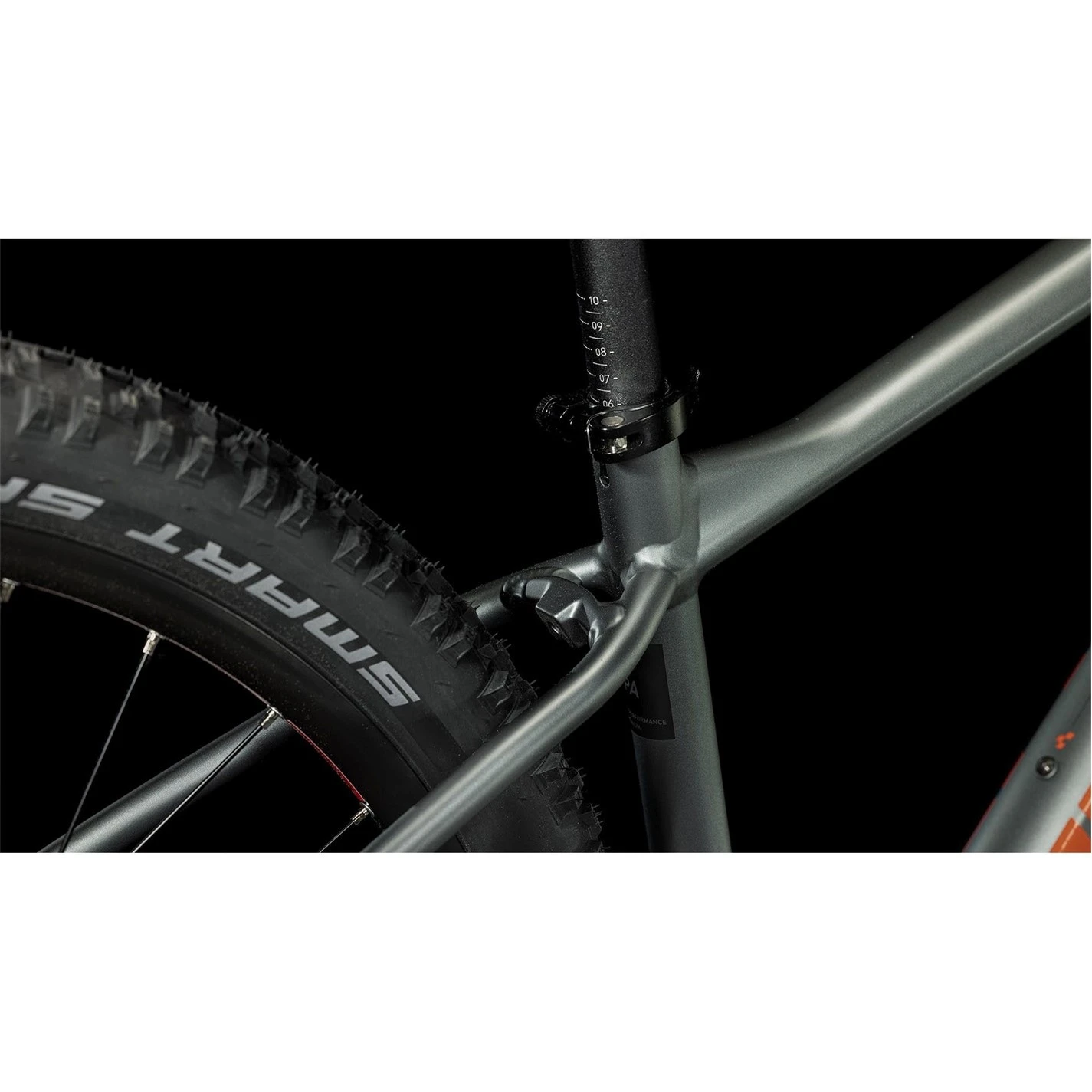

• Seatpost: CUBE Performance Post, 27.2mm

Bike Sizing

Choosing the bike size depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride. This bike size guide gives our customers general advice on choosing the right size.

Product code: 910036
